Buying guide
Battery Analyzers
Our pick

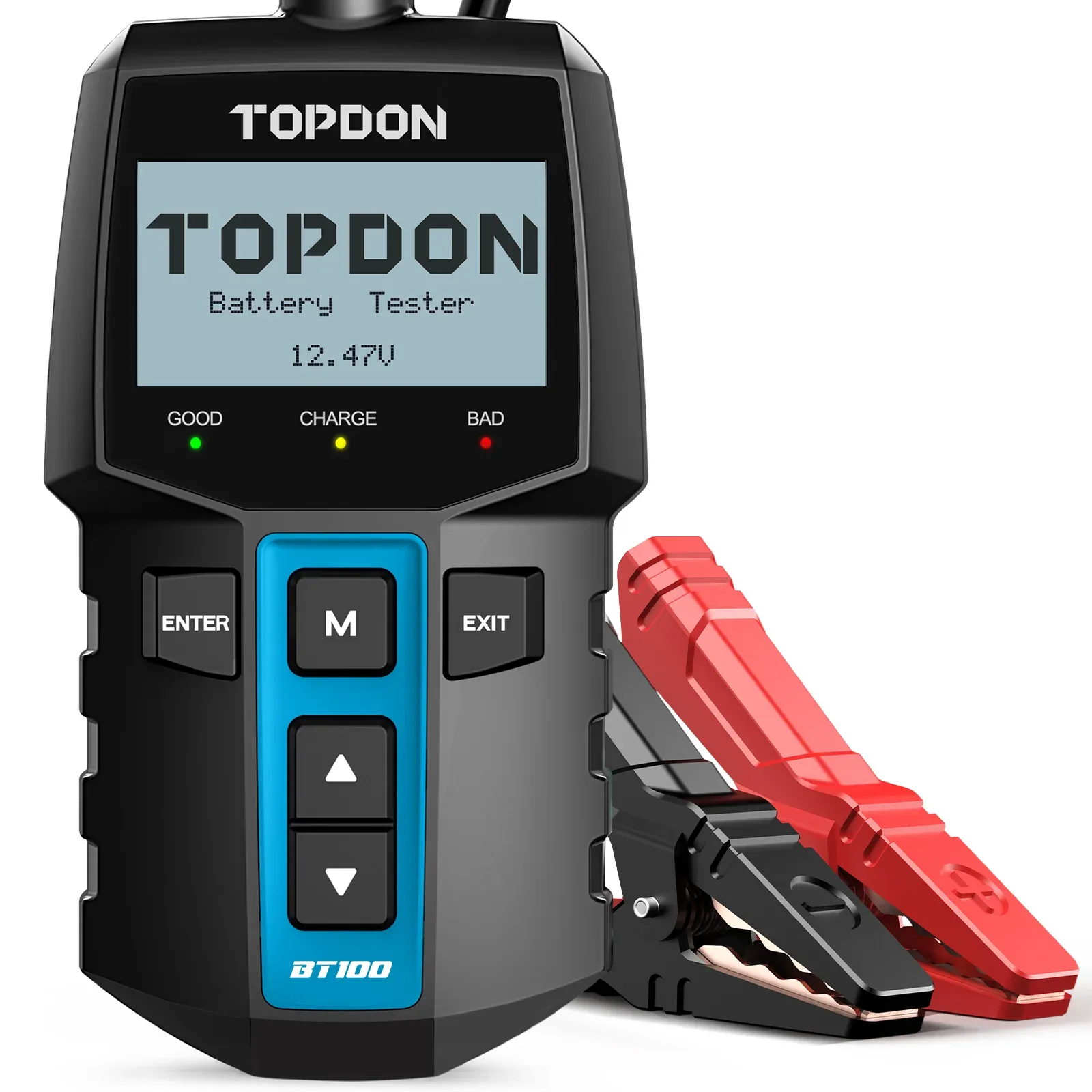

Topdon BT100
Choose the Topdon BT100 for checking a 12V car battery and investigating cranking or charging-system problems.1
Why this one
Before you buy: The Topdon BT100 has no built-in printer, so choose a printing tester if you need paper records.2
The alternatives
Other contenders
For keeping a printed record of every test

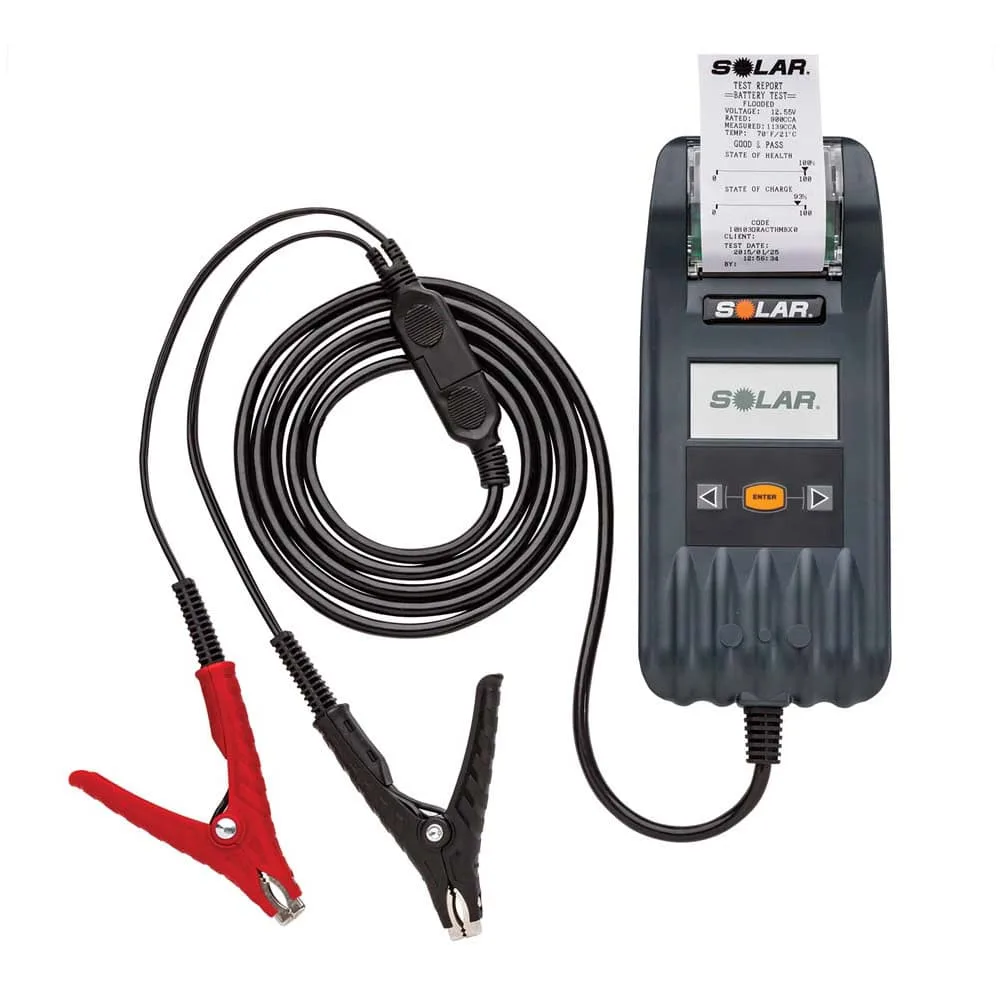

A paper test record calls for a tester with a built-in printer.8 The Clore Automotive BA327 is the pick for this, combining its printer with a 40 to 2,000 CCA range and listed support for start-stop AGM and enhanced flooded batteries.8
8 models / at a glance
Key differences
Lowest voltage it reads · V—Lower preferred ↓
Lowest voltage it reads · V—Lower preferred ↓
Lowest voltage it reads · V—Lower preferred ↓
Lowest voltage it reads · V—Lower preferred ↓
Lowest voltage it reads · V—Lower preferred ↓
Compare the options
8 products
Narrow your options
Reset requirementsCompare models side by side
Choose two or three products to compare.
Models in this comparison








Every specification for these products

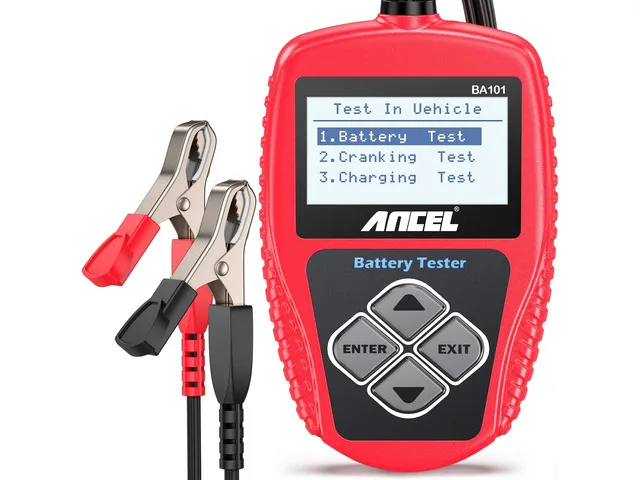

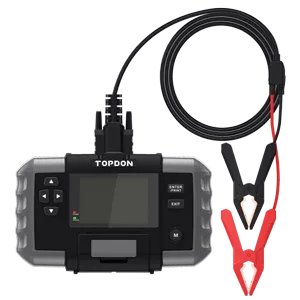

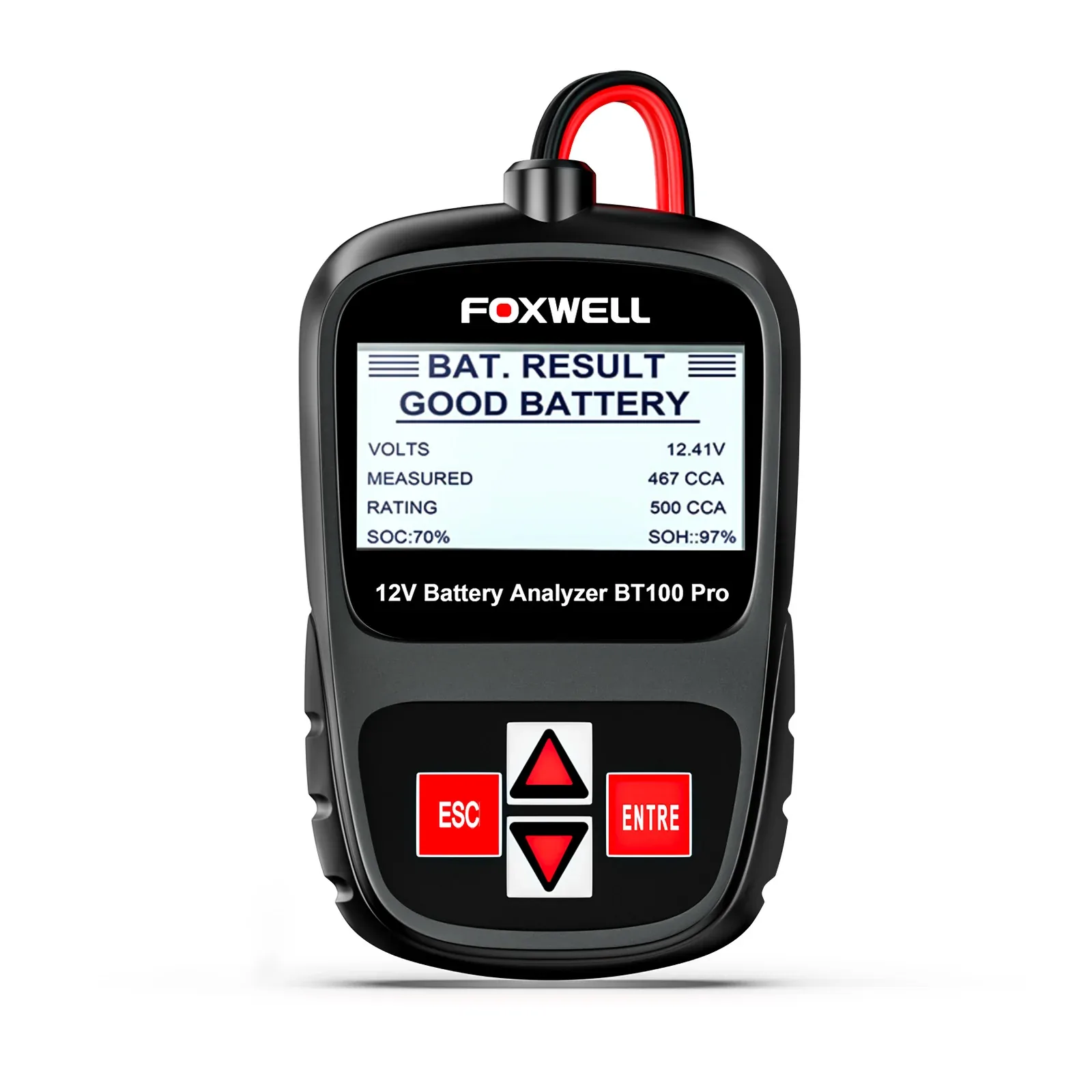

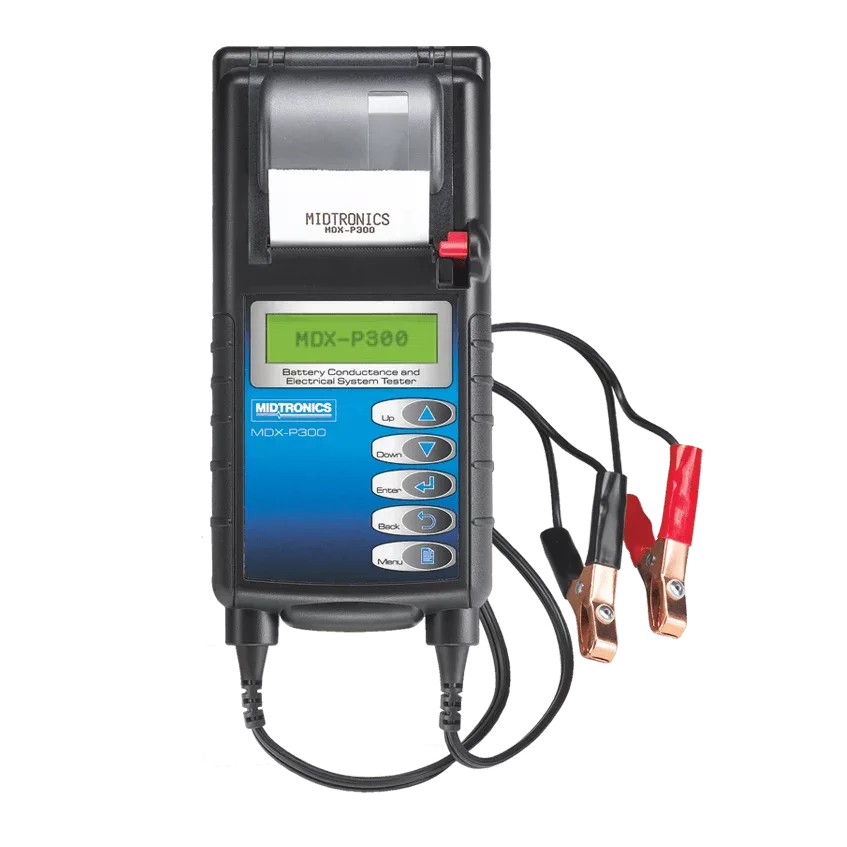

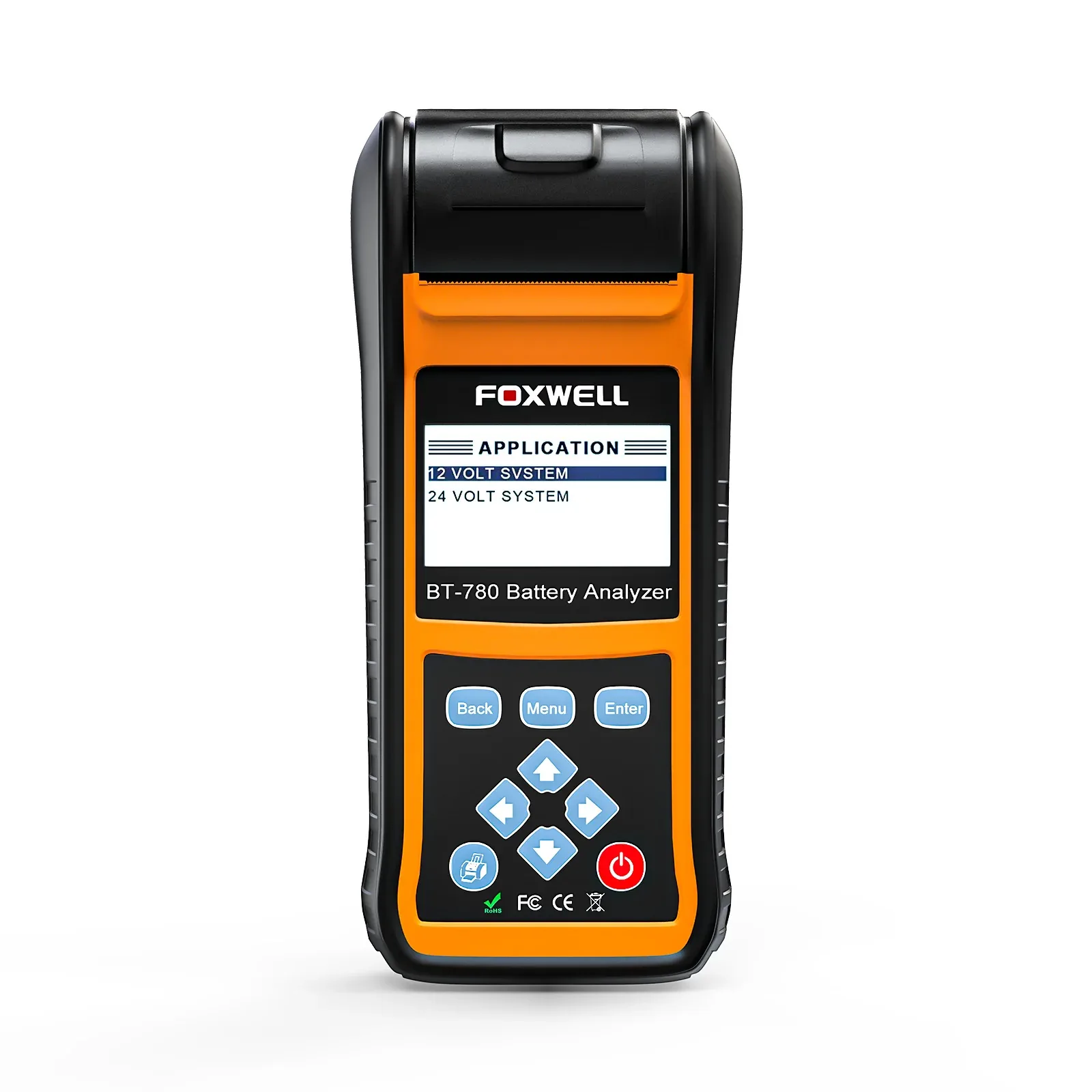

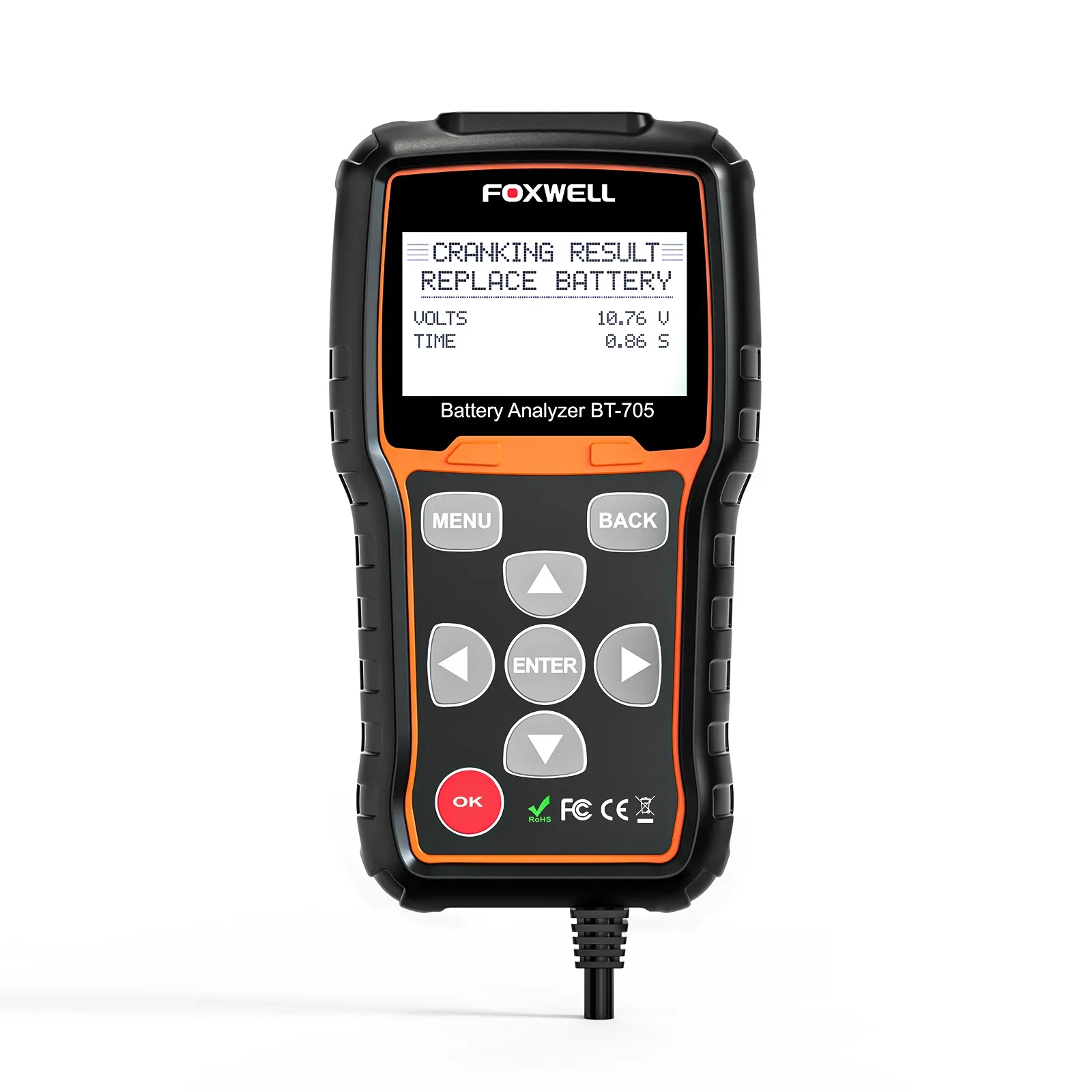

| Specification | Topdon BT100 | Ancel BA101 | Clore Automotive BA327 | Foxwell BT-705 | Foxwell BT100 Pro | Foxwell BT780 | Midtronics MDX-P300 | TOPDON BT600 |
|---|---|---|---|---|---|---|---|---|
| Test method | Conductance21 | Conductance4 | Conductance22 | Conductance9 | Conductance23 | Conductance15 | Conductance20 | Conductance18 |
| Voltages supported | 12V1 | 12V3 | 6V and 12V batteries and 12V and 24V charging systems5 | 12V & 24V9 | 12V11 | 12V & 24V15 | 12V17 | 12V18 |
| Battery types tested | regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries1 | Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell3 | Flooded, AGM, Spiral Wound, Gel Cell, Start-Stop AGM and Enhanced Flooded batteries8 | regular flooded, AGM flat plate, AGM spiral and GEL24 | regular flooded, AGM flat plate, AGM spiral and gel batteries11 | Regular Flooded, AGM Flat Plate, AGM Spiral and GEL, Start-Stop AGM and EFP Batteries16 | standard (flooded), AGM or Gel17 | AGM, GEL, EFB, and standard flooded19 |
| Cranking test | Yes1 | Yes3 | Yes6 | Yes10 | No12 | Yes15 | Yes17 | Yes19 |
| Charging system test | Yes1 | Yes3 | Yes7 | Yes10 | No13 | Yes15 | Yes17 | Yes19 |
| Testing capacity | 100–2,000 CCA1 | 100–2,000 CCA3 | 40–2,000 CCA8 | 100–2,000 CCA9 | 100–1,100 CCA14 | — | 100–1,400 CCA20 | — |
| Lowest voltage it reads | — | 9 V3 | 1.5 V8 | — | — | — | 1 V20 | — |
| Built-in printer | No2 | No4 | Yes8 | No10 | No14 | Yes16 | Yes17 | Yes19 |
| Display | Backlit lcd1 | — | Backlit lcd7 | — | Backlit lcd12 | — | — | — |
| Lead length | — | — | 3.048 m7 | ≈1.8 m (5.9 ft)25 | — | — | — | — |
| Warranty | 24 months1 | — | — | 12 months24 | 12 months11 | — | — | — |
Compare features
Reset requirements
8 products
How they compare
| Specification | Our pickTopdon BT100 | Ancel BA101 | Clore Automotive BA327 | Foxwell BT-705 | Foxwell BT100 Pro | Foxwell BT780 | Midtronics MDX-P300 | TOPDON BT600 |
|---|---|---|---|---|---|---|---|---|
| Buy | ||||||||
| Test method | Conductance21 | Conductance4 | Conductance22 | Conductance9 | Conductance23 | Conductance15 | Conductance20 | Conductance18 |
| Voltages supported | 12V1 | 12V3 | 6V and 12V batteries and 12V and 24V charging systems5 | 12V & 24V9 | 12V11 | 12V & 24V15 | 12V17 | 12V18 |
| Battery types tested | regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries1 | Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell3 | Flooded, AGM, Spiral Wound, Gel Cell, Start-Stop AGM and Enhanced Flooded batteries8 | regular flooded, AGM flat plate, AGM spiral and GEL24 | regular flooded, AGM flat plate, AGM spiral and gel batteries11 | Regular Flooded, AGM Flat Plate, AGM Spiral and GEL, Start-Stop AGM and EFP Batteries16 | standard (flooded), AGM or Gel17 | AGM, GEL, EFB, and standard flooded19 |
| Cranking test | Yes1 | Yes3 | Yes6 | Yes10 | No12 | Yes15 | Yes17 | Yes19 |
| Charging system test | Yes1 | Yes3 | Yes7 | Yes10 | No13 | Yes15 | Yes17 | Yes19 |
| Testing capacity | 100–2,000 CCA1 | 100–2,000 CCA3 | 40–2,000 CCA8 | 100–2,000 CCA9 | 100–1,100 CCA14 | — | 100–1,400 CCA20 | — |
| Lowest voltage it reads | — | 9 V3 | 1.5 V8 | — | — | — | 1 V20 | — |
| Built-in printer | No2 | No4 | Yes8 | No10 | No14 | Yes16 | Yes17 | Yes19 |
| Display | Backlit lcd1 | — | Backlit lcd7 | — | Backlit lcd12 | — | — | — |
| Lead length | — | — | 3.048 m7 | ≈1.8 m (5.9 ft)25 | — | — | — | — |
| Warranty | 24 months1 | — | — | 12 months24 | 12 months11 | — | — | — |
