Buying guide

Automotive Multimeters

Our pick

Fluke 88V

Choose the Fluke 88V for automotive electrical measurements.12

Compare the alternatives

Why this one

  • Its stated safety ratings are CAT III 1000 V and CAT IV 600 V; match the measurement category and voltage to the circuit and follow the meter and probe instructions.2
  • Automatic ranging saves manual range changes during a check.1
  • The backlit display is easier to read in a dim garage.2

For true-RMS readings

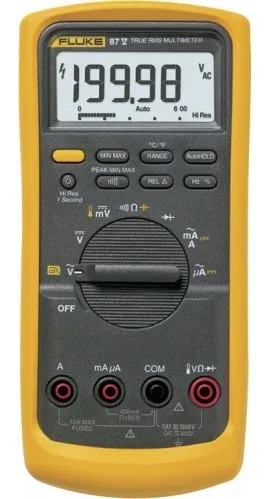

Choose a meter with stated true-RMS AC measurement when that measurement method is required.3 The Fluke 87V specifies true-RMS AC voltage measurement.3

For temperature readings

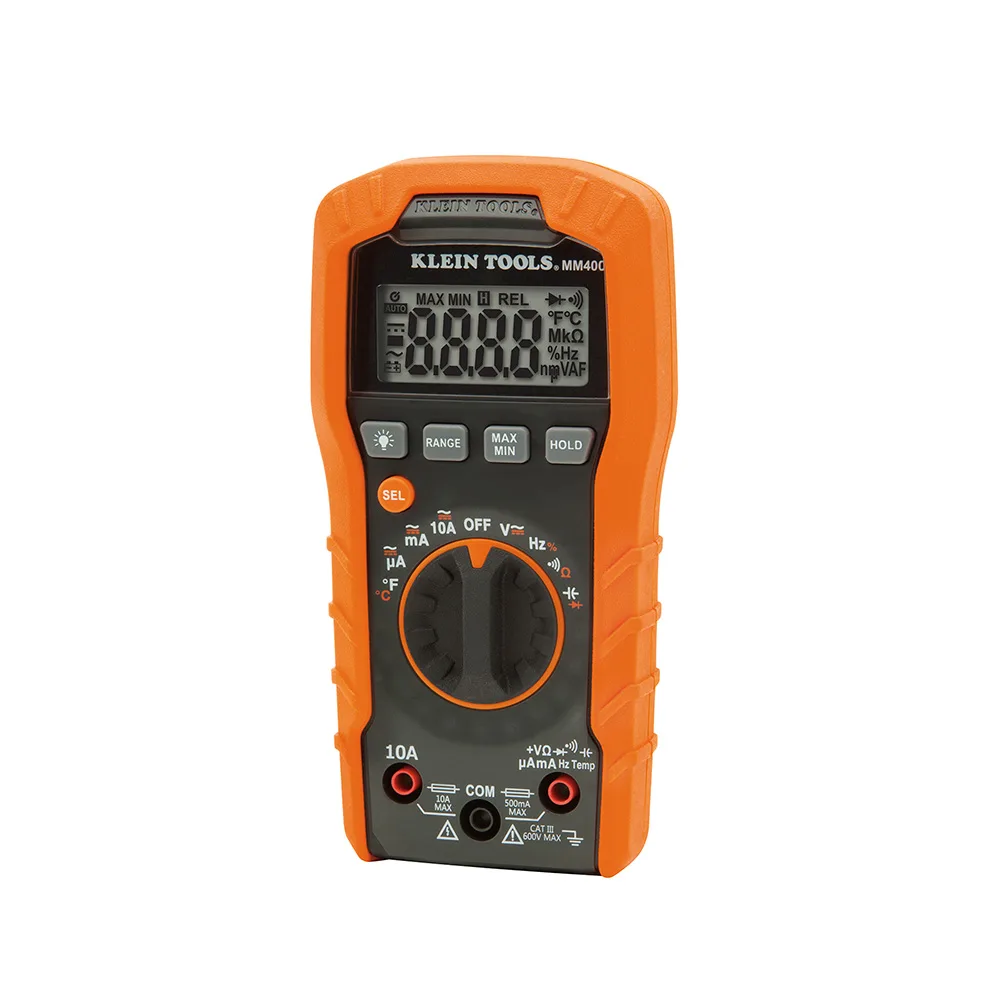

Choose a meter with an explicitly supported temperature-measurement function when your check calls for a temperature reading.16 The Klein Tools MM400 supports temperature measurement; check the probe and measurement instructions for your application.16

For a hands-free mount

A compatible hanger can hold the meter for viewing while you use both hands for the test.3 The Fluke 87V fits an optional magnetic hanger; budget for that accessory rather than assuming it is included.3

8 models / at a glance

Key differences

Every specification ↗
Maximum voltage · V1,000 V1Higher preferred ↑
Maximum voltage · V1,000 V9Higher preferred ↑
Maximum voltage · V600 V1Higher preferred ↑
Maximum voltage · V600 V10Higher preferred ↑

Compare the options

8 products

Narrow your options

Maximum voltage (V)
Reset requirements
Compare models side by side

Models in this comparison

Every specification for these products
SpecificationFluke 88VFluke 87VFluke 87V MaxFluke 115Fluke 117Klein Tools MM400Klein Tools MM600Power Probe DM300AUTO
CAT safety ratingCAT III 1000 V CAT IV 600 V2CAT III 1000 V CAT IV 600 V3CAT III 1000 V CAT IV 600 V4CAT III 600V safety rated1CAT III 600V5CAT III 600V6cat IV 600V/cat III 1000V71000V CATIII/ 600V Cat IV8
Auto-rangingYes1Yes9Yes13Yes14Yes5Yes6Yes11Yes15
Maximum voltage1,000 V11,000 V91,000 V4600 V1600 V10600 V61,000 V111,000 V12
Backlit displayYes2Yes9Yes4Yes1Yes5Yes6Yes11Yes12
True RMS—Yes3—————Yes12
Maximum current10 A210.00 A910 A410 A1410.00 A510 A610 A1130 A (Duration: max. 30 sec. for 30A with 10 minutes rest time. Environment: Automotive circuits only; no mains or CAT II or higher environments. Configuration: 30A Probe Accessory)15
Temperature measurement—————Yes16——
Duty cycle———————Yes12
Hands-free mount—Yes3——————

Compare features

Reset requirements

8 products

How they compare

SpecificationOur pickFluke 88VFluke 87VFluke 87V MaxFluke 115Fluke 117Klein Tools MM400Klein Tools MM600Power Probe DM300AUTO
Buy
CAT safety ratingCAT III 1000 V CAT IV 600 V2CAT III 1000 V CAT IV 600 V3CAT III 1000 V CAT IV 600 V4CAT III 600V safety rated1CAT III 600V5CAT III 600V6cat IV 600V/cat III 1000V71000V CATIII/ 600V Cat IV8
Auto-rangingYes1Yes9Yes13Yes14Yes5Yes6Yes11Yes15
Maximum voltage1,000 V11,000 V91,000 V4600 V1600 V10600 V61,000 V111,000 V12
Backlit displayYes2Yes9Yes4Yes1Yes5Yes6Yes11Yes12
True RMS—Yes3—————Yes12
Maximum current10 A210.00 A910 A410 A1410.00 A510 A610 A1130 A (Duration: max. 30 sec. for 30A with 10 minutes rest time. Environment: Automotive circuits only; no mains or CAT II or higher environments. Configuration: 30A Probe Accessory)15
Temperature measurement—————Yes16——
Duty cycle———————Yes12
Hands-free mount—Yes3——————
