Buying guide

Compression Test Kits

Our pick

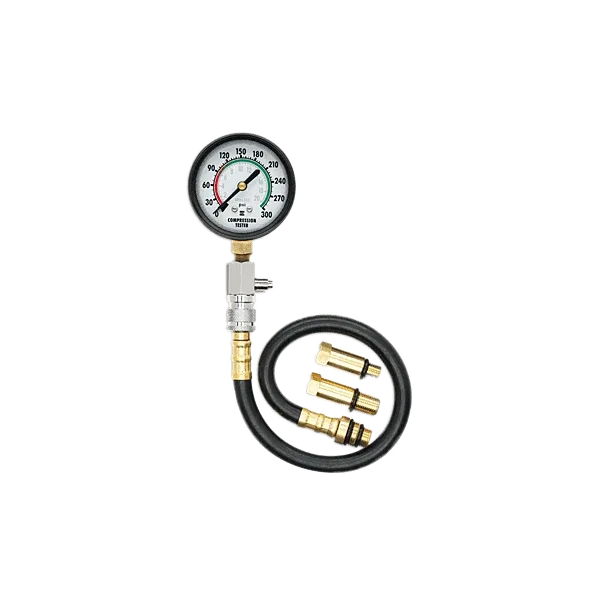

OTC Deluxe Compression Tester Kit

Our pick is the OTC Deluxe Compression Tester Kit for gasoline-engine checks. It includes a deep-well connector and spare seals.1

Compare the alternatives

Why this one

  • Its included adapters and deep-well connector give you options for connecting to different spark-plug openings.12
  • Included spare seals let you replace a worn seal without first ordering parts.1

The alternatives

Other contenders

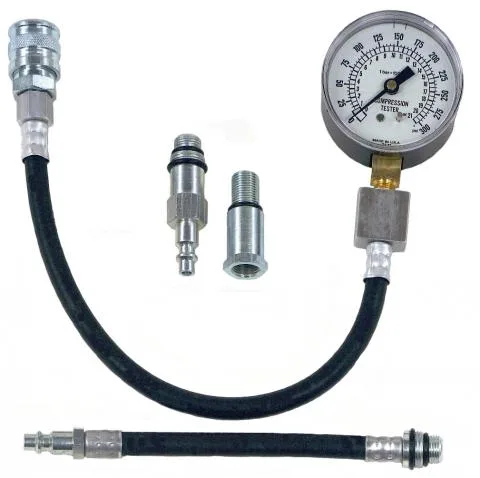

  • Innova 3612

    Choose the Innova 3612 for a 15-inch hose, quick-release connection and side release valve for repeated cylinder checks. Its instructions limit use to spark-ignited gasoline engines that do not exceed 250 psi; match the included fittings to the spark-plug opening.34

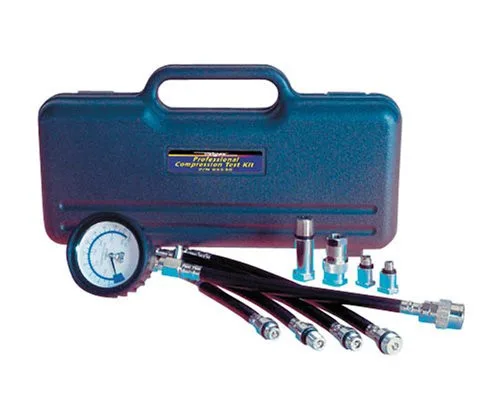

  • Mityvac 5530

    Choose the Mityvac MV5530 when you want one gauge with psi, bar, kPa and kg/cm² scales. It comes with 10, 12, 14 and 18 mm adapter options, a hard case and spare Schrader valves and O-ring seals.25

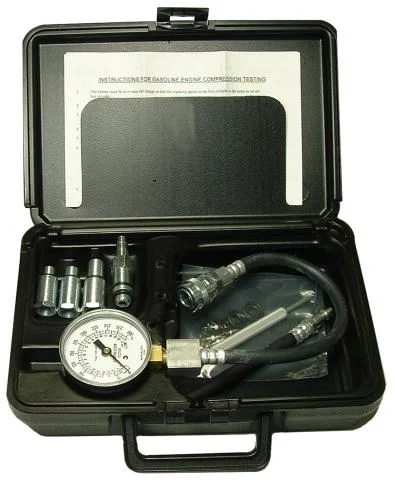

  • Tool Aid 34000

    Choose the Tool Aid 34000 for gasoline-engine applications using its 14 or 18 mm connections. Its side release valve allows another check without removing the adapter; confirm the specified plug opening and application first.6

  • Tool Aid 34300

    Choose the Tool Aid 34300 when you want 10, 12, 14 and 18 mm adapters together with a molded case and a repair kit containing O-rings, valve cores and an installation tool. Check the exact adapter and engine application before use.7

Buying advice

  • Match your engine's spark-plug threads to an included adapter and check the kit's application list before buying.2

Compare the options

5 products

Compare models side by side

Models in this comparison

Every specification for these products
SpecificationOTC Deluxe Compression Tester KitInnova 3612Mityvac 5530Tool Aid 34000Tool Aid 34300
Adapter sizeswith a 14-mm fitting on the end. OTC also includes 10-, 12- and 18-mm adapters212- 14- and 18-mm adapters214 mm short-thread x 18 mm long-thread adapter • 10 mm thread small engine adapter • 12 mm thread small engine adapter514mm and 18mm610mm, 12mm, 14mm and 18mm7
Hose length25 in215 in3———
Deep-well adapterYes1————
Gauge units0 to 300 PSI and 0 to 2,100 kPa2300 PSI2(psi, kg/cm², bar, kPa)50-300 PSI and 0-21 BAR60-300 PSI and 0-21 BAR7
Dial size——2.75 in5——
CaseHard case1—Hard case2—Hard case7
Spare seals includedYes1—Yes2—Yes7
Gauge protectionYes1—Yes2——
Small-engine use—Yes3———
Engine typeGasoline1Gasoline (Configuration: Innova authored operating instructions for kits3612 and3614: spark-ignited gasoline engines which do not exceed250psi; gauge scale maximum is a separate quantity.)4Gasoline2Gasoline6Gasoline8

How they compare

SpecificationOur pickOTC Deluxe Compression Tester KitInnova 3612Mityvac 5530Tool Aid 34000Tool Aid 34300
Buy
Adapter sizeswith a 14-mm fitting on the end. OTC also includes 10-, 12- and 18-mm adapters212- 14- and 18-mm adapters214 mm short-thread x 18 mm long-thread adapter • 10 mm thread small engine adapter • 12 mm thread small engine adapter514mm and 18mm610mm, 12mm, 14mm and 18mm7
Hose length25 in215 in3———
Deep-well adapterYes1————
Gauge units0 to 300 PSI and 0 to 2,100 kPa2300 PSI2(psi, kg/cm², bar, kPa)50-300 PSI and 0-21 BAR60-300 PSI and 0-21 BAR7
Dial size——2.75 in5——
CaseHard case1—Hard case2—Hard case7
Spare seals includedYes1—Yes2—Yes7
Gauge protectionYes1—Yes2——
Small-engine use—Yes3———
Engine typeGasoline1Gasoline (Configuration: Innova authored operating instructions for kits3612 and3614: spark-ignited gasoline engines which do not exceed250psi; gauge scale maximum is a separate quantity.)4Gasoline2Gasoline6Gasoline8
