Buying guide

Powered Automotive Circuit Probes

Our pick

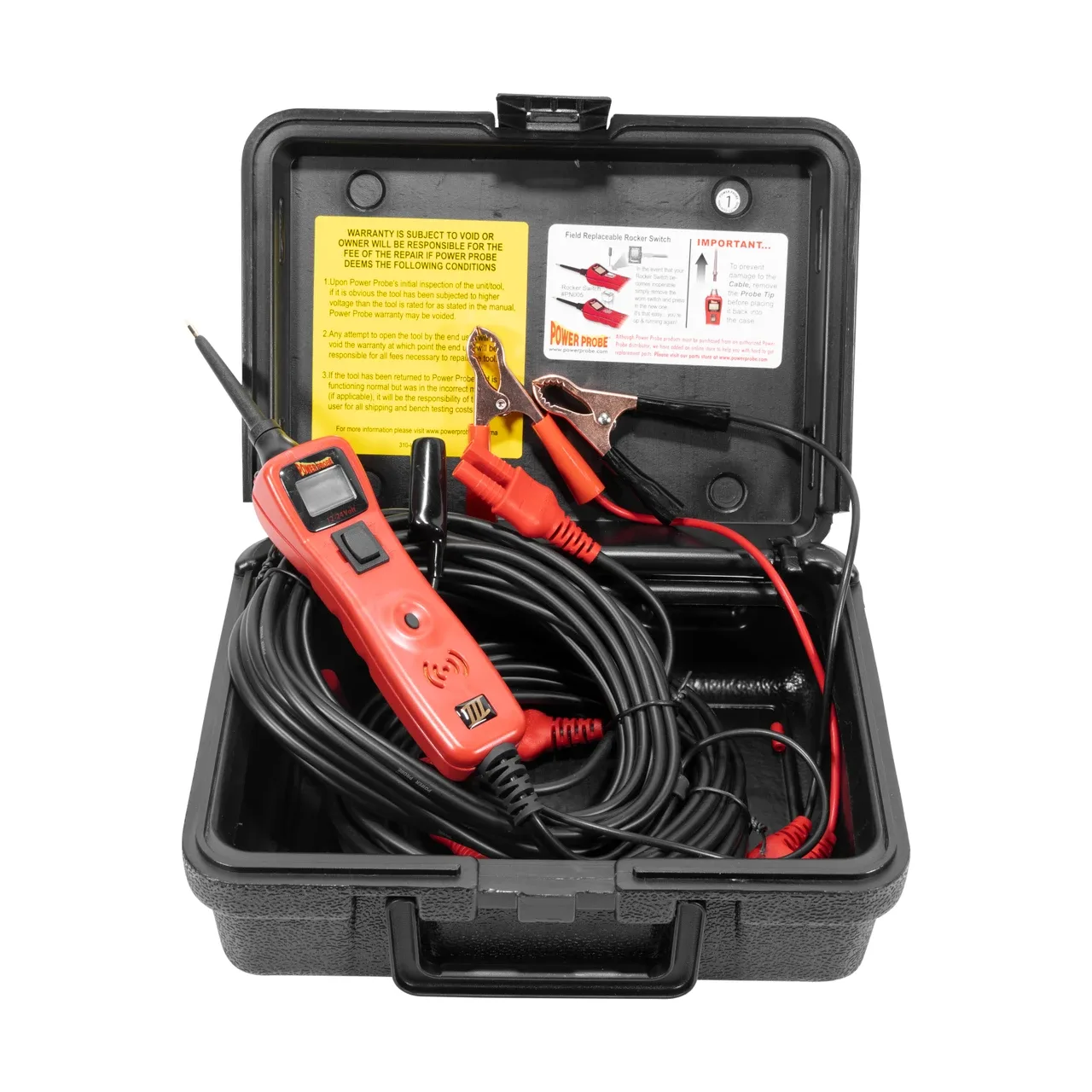

Power Probe PP3CSRED

Choose the PP3CSRED for routine voltage and powered-component checks. Choose the Maestro when you need trace capture and app logging, the PP4 for AC and pulse-width functions, or the PS100 when you want a case kit with a separate extension and lighter adapter.1–4

Compare the alternatives

Why this one

  • Start with the Power Probe PP3CSRED for voltage checks and applying battery power or ground during a documented 12 to 24 V test. Its 20-foot attached lead and standalone package make it a practical baseline.1

The alternatives

Other contenders

  • Autel PS100 PowerScan PS100

    The PS100 includes a carrying case, battery clips, lighter adapter, probe tip and separate 20-foot extension. Choose this kit when those accessories and a color TFT readout suit the job; the attached cable is 20 feet and its external supply is a 12- or 24-volt vehicle battery.45

  • Power Probe PP319FTCRED

    Choose the PP319FTCRED package when you need its separate 20-foot extension and cigarette-lighter adapter. Its attached lead remains 20 feet.1

  • Power Probe PP401AS PP4

    Choose the PP4 for AC voltage, frequency and pulse-width work. The selected PP401AS includes a case and 23-foot attached cable; its specified operating supply is 8 to 30 V DC.36

  • Power Probe PPTM01AS Maestro

    Choose the Maestro for visual traces of DC voltage, AC voltage, frequency and injector tests, with app mirroring, logging and saved captures. It has a 23-foot power lead and a specified 9 to 30 V DC operating supply.27

Buying advice

  • Follow the component test procedure before applying battery power or ground to the tip. The PP4 specifies an 8 to 30 V DC supply, the Maestro 9 to 30 V DC, and the PS100 a 12- or 24-volt vehicle battery. The PP3's 8 A thermal breaker describes overload protection, not a current-measurement function.1235

Compare the options

5 products

Compare models side by side

Models in this comparison

Every specification for these products
SpecificationPower Probe PP3CSREDAutel PS100 PowerScan PS100Power Probe PP319FTCREDPower Probe PP401AS PP4Power Probe PPTM01AS Maestro
Operating Supply12-24 volt sources112.0 or 24.0 V power provided via vehicle battery512-24 volt sources1Technical specifications • Min Operating Voltage: 8 VDC • Max Operating Voltage: 30 VDC3Technical specifications • Min Operating Voltage: 9 VDC • Max Operating Voltage: 30 VDC2
Power and Ground Outputsupply Battery Voltage, and ground1Positive or negative battery current to the tip4supply Battery Voltage, and ground1supply battery ground and power8the ability to apply battery-supplied power and ground2
Attached Lead Length20 ft120 ft520 ft123 ft623 ft7
Included Package• Power Probe 3 with standard 20 ft (6 m) • Power Cable • 3 in (8 cm) Probe Tip • Battery Clip Set • Instruction Manual/CD PP3CS CONTENTS12.3 Accessories Included 1) User‟s Manual. 2) Cigarette lighter adapter. 3) Battery hookup clips 4) Probe tip. 5) 20ft. extension cable. 4 6) Rugged blow molded case.4• Power Probe 3 with standard 20 ft (6 m) • Power Cable • 3 in (8 cm) Probe Tip • Battery Clip Set • Cigarette Lighter Adapter • 20 ft (6 m) Power Cable Extension • Instruction Manual PP319 CONTENTS1What’s included • Convenient Carrying Case • Alligator Clip • Battery clipset • 3 in (8 cm) probe tip • Instructions manual3What’s included • Power Probe® Maestro • 4 in (10 cm) probe tip • Battery clipset • Alligator clip adapter • Instruction manual2
Voltage Measurement RangeDC 0 to +70V +1 Digit1—DC 0 to +70V +1 Digit1——
Separate Supplied Extension—20 ft420 ft1——
Overload Protection8 amp thermal response – Manual reset1an internal circuit breaker that trips if overloaded98 amp thermal response – Manual reset1—Circuit Breaker: 8 Amp Thermal – Auto Reset2
DisplayDigital Display10TFT color display (160 x 128 dpi)5Digital Display10——

How they compare

SpecificationOur pickPower Probe PP3CSREDAutel PS100 PowerScan PS100Power Probe PP319FTCREDPower Probe PP401AS PP4Power Probe PPTM01AS Maestro
Buy
Operating Supply12-24 volt sources112.0 or 24.0 V power provided via vehicle battery512-24 volt sources1Technical specifications • Min Operating Voltage: 8 VDC • Max Operating Voltage: 30 VDC3Technical specifications • Min Operating Voltage: 9 VDC • Max Operating Voltage: 30 VDC2
Power and Ground Outputsupply Battery Voltage, and ground1Positive or negative battery current to the tip4supply Battery Voltage, and ground1supply battery ground and power8the ability to apply battery-supplied power and ground2
Attached Lead Length20 ft120 ft520 ft123 ft623 ft7
Included Package• Power Probe 3 with standard 20 ft (6 m) • Power Cable • 3 in (8 cm) Probe Tip • Battery Clip Set • Instruction Manual/CD PP3CS CONTENTS12.3 Accessories Included 1) User‟s Manual. 2) Cigarette lighter adapter. 3) Battery hookup clips 4) Probe tip. 5) 20ft. extension cable. 4 6) Rugged blow molded case.4• Power Probe 3 with standard 20 ft (6 m) • Power Cable • 3 in (8 cm) Probe Tip • Battery Clip Set • Cigarette Lighter Adapter • 20 ft (6 m) Power Cable Extension • Instruction Manual PP319 CONTENTS1What’s included • Convenient Carrying Case • Alligator Clip • Battery clipset • 3 in (8 cm) probe tip • Instructions manual3What’s included • Power Probe® Maestro • 4 in (10 cm) probe tip • Battery clipset • Alligator clip adapter • Instruction manual2
Voltage Measurement RangeDC 0 to +70V +1 Digit1—DC 0 to +70V +1 Digit1——
Separate Supplied Extension—20 ft420 ft1——
Overload Protection8 amp thermal response – Manual reset1an internal circuit breaker that trips if overloaded98 amp thermal response – Manual reset1—Circuit Breaker: 8 Amp Thermal – Auto Reset2
DisplayDigital Display10TFT color display (160 x 128 dpi)5Digital Display10——
